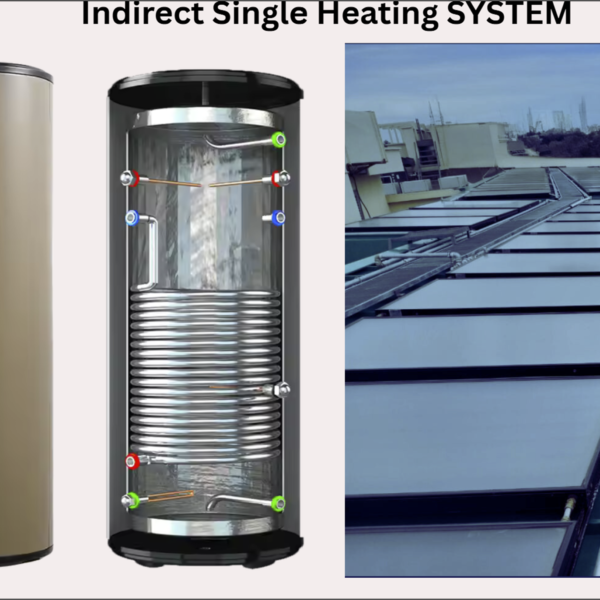

Active and indirect solar water heating system
Active and indirect solar water heating system
Active and direct solar water heating system - Image 1
Active and direct solar water heating system - Image 2
Active and direct solar water heating system - Image 3
Click to enlarge
Active and direct solar water heating system
Active and direct solar water heating system - Image 2
Active and direct solar water heating system - Image 3

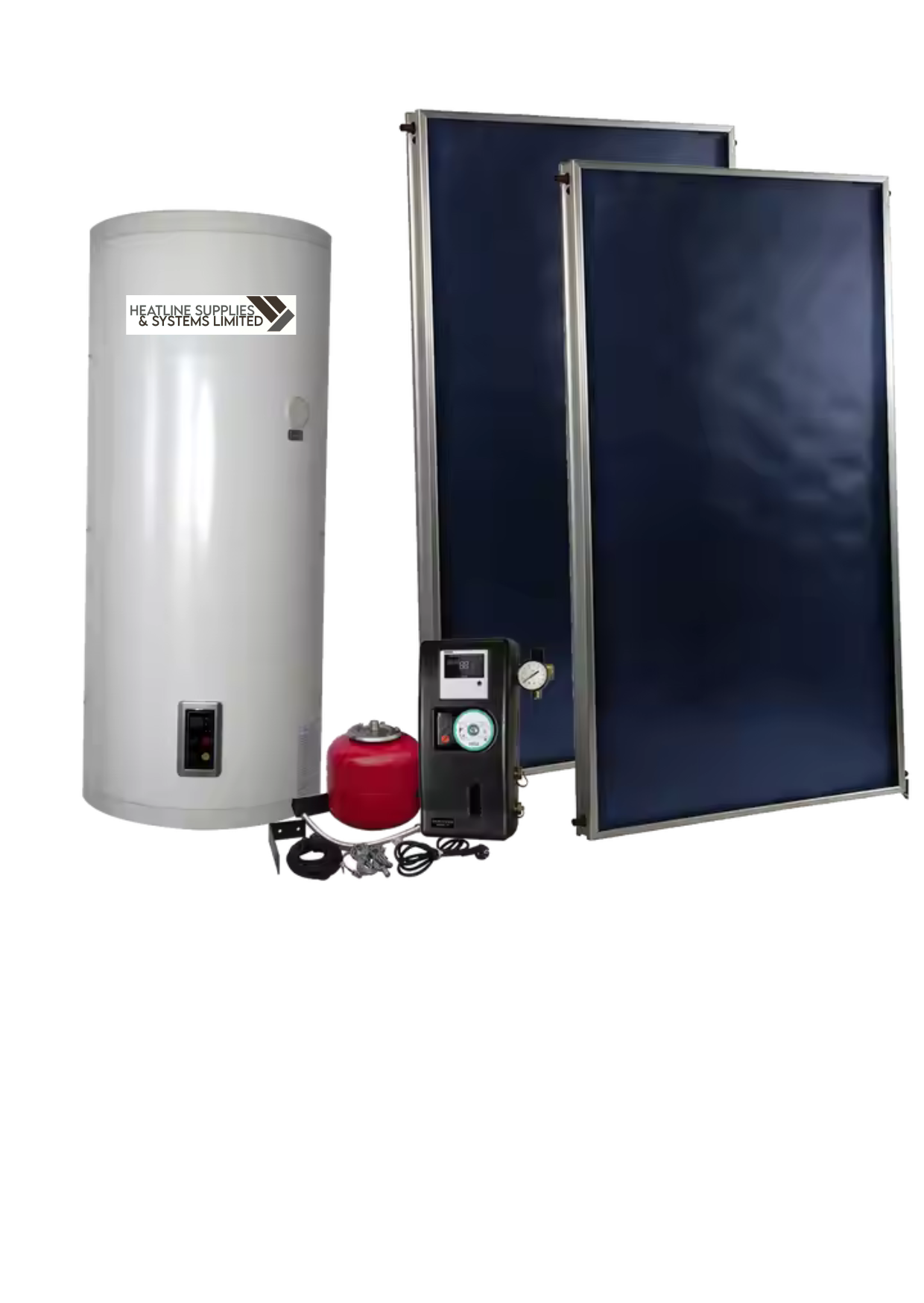

Active and direct solar water heating system

Product Overview

Our Direct Active Solar Water Heating System provides efficient and reliable hot water for homes, commercial, and industrial use. High-efficiency flat plate collectors and a stainless steel storage tank ensure maximum solar heat absorption and consistent performance.

A circulation pump with automatic temperature control optimizes heat transfer, delivering hot water even during high demand. As a direct system, the same water heats in the collectors and supplies your taps, ensuring high efficiency and low heat loss.

Built with corrosion-resistant materials and supplied with a backup electric heater and safety components, the system supports flat and pitched roof installation and delivers long-term solar energy savings.

Technical Specification



Model SDA 200 SDA 300 SDA 500 SDA 1000 SDA 1500 SDA 2000 SDA 3000
Tank Capacity (Litres) 200 L 300 L 500 L 1000 L 1500 L 2000 L 3000 L
System Type Direct Active System Direct Active System Direct Active System Direct Active System Direct Active System Direct Active System Direct Active System
Tank Orientation Vertical, Ground Mounted Same Same Same Same Same Same
Inner Tank Material Stainless Steel Plate (SUS 304/316)** Same Same Same Same Same Same
Outer Tank Casing Powder-Coated & Galvanized Steel Plate Same Same Same Same Same Same
Insulation Polyurethane Foam (PUF) PUF PUF PUF PUF PUF PUF
Insulation Thickness 50–70 mm (Model Dependent) Same Same Same Same Same Same
Collector Type Flat Plate Collector Same Same Same Same Same Same
Number of Collectors 2 2 4 6 9 12 18
Collector Mounting Options Pitched Roof / Flat Roof Same Same Same Same Same Same
Pump Type High-Efficiency Circulation Pump (AC/Energy Class Standard) Same Same Same Same Same Same
Control System Differential Automatic Temperature Controller Same Same Same Same Same Same
Backup Electrical Heater Included (Thermostat Controlled) Same Same Same Same Same Same
Safety Components Pressure & Temperature Relief Valve Same Same Same Same Same Same
Air Release Valve Included Included Included Included Included Included Included
Solar-to-Solar Connectors Included Included Included Included Included Included Included
Operating Pressure 1.0–1.5 bar (Typical System Rating)** Same Same Same Same Same Same
Max. Temperature Rating 90°C 90°C 90°C 90°C 90°C 90°C 90°C
Heat Transfer Mechanism Pump Circulated (Active Solar Heating) Same Same Same Same Same Same
Recommended Applications Homes / Small Institutions Homes / Institutions Commercial / Industrial Industrial / Estates Industrial / Hotels Large Industrial Extra Large Industrial
System Weight (Approx., Empty) ~120 kg ~160 kg ~240 kg ~450 kg ~680 kg ~900 kg ~1400 kg
System Weight (Approx., Full) ~320 kg ~460 kg ~740 kg ~1450 kg ~2180 kg ~2900 kg ~4400 kg
Warranty 5 Years (Tank & Collectors) Same Same Same Same Same Same

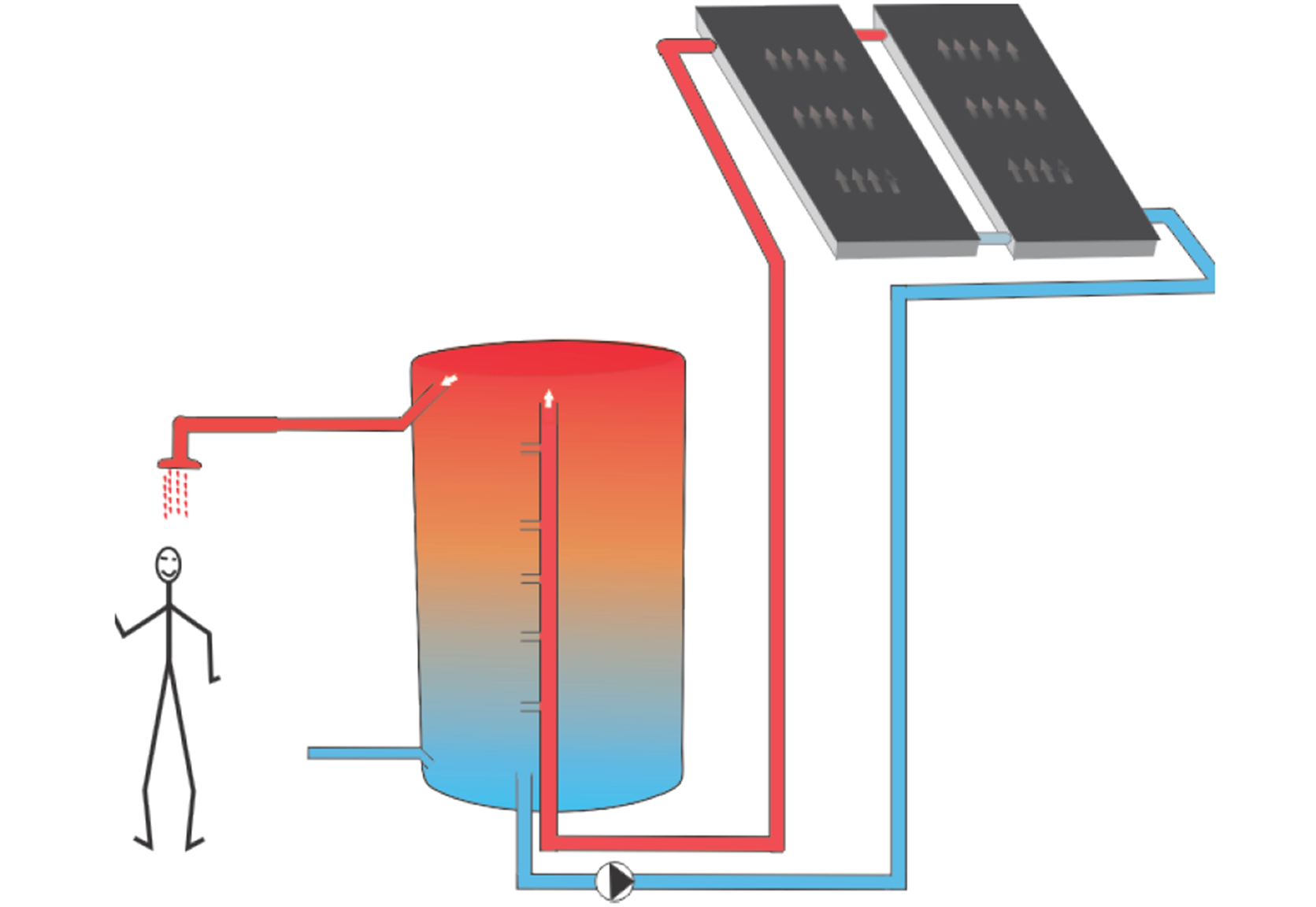

Illustration
